Night Vision Thermal Fusion
Product Description

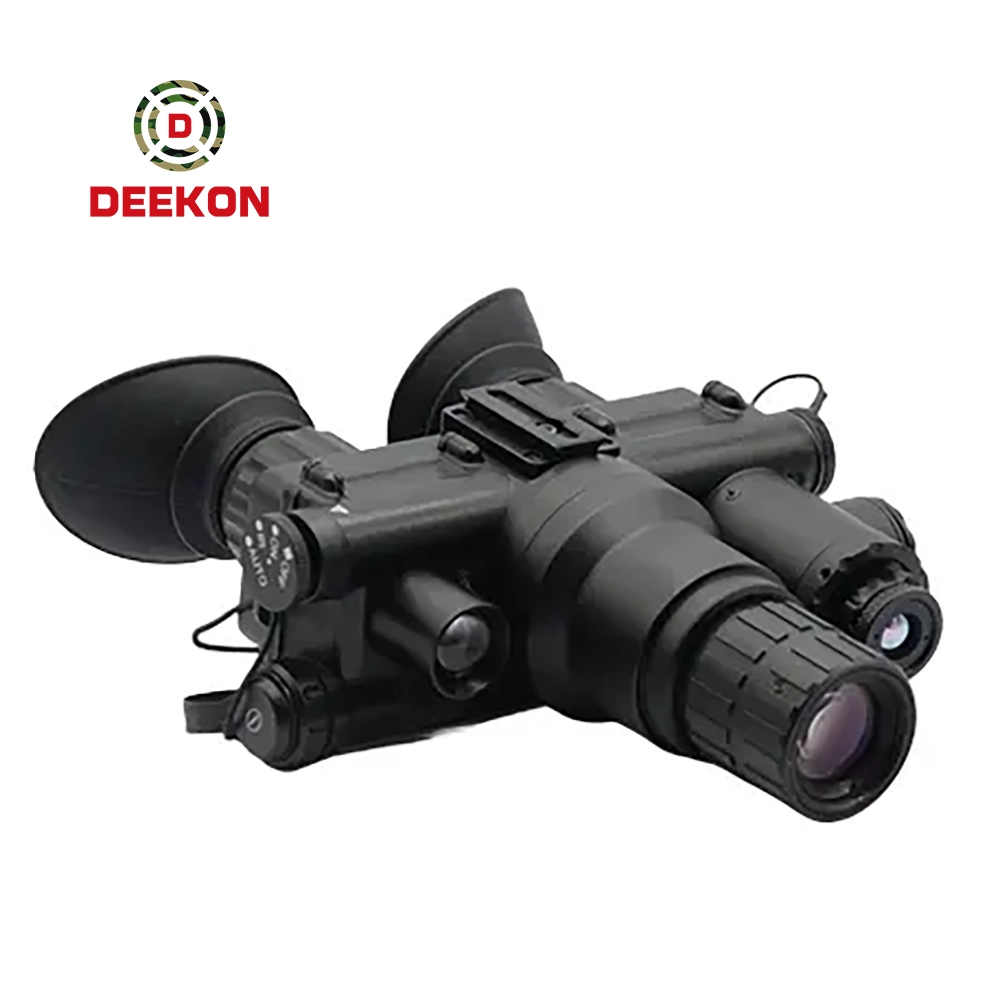

DK-NV-04 is based on the latest optoelectronic technology research and development of new products,，The instrument adopts the high-performance generation ii/three image intensifier, with excellent performance, small volume and weight ,light, clear imaging, simple operation, high cost performance, and by replacing the objective lens (or connecting multiplier lens).
Product Specifications
Model: DK-NV-04
Generation: Gen 2+/ Euro Gen3
Magnification: 1x / (3x /5x as optional)
FOV(°): 42+/-3
Diopter: +5/-5
MTTF（H）: 10,000
Minimum Order Quantity: 1 units
Product Description
Technical Specifications
| Model | DK-NV-04 | – |
|---|---|---|
| IIT | Gen 2+ | Euro Gen3 |
| Resolution (lp/mm) | 47-57 | 60-72 |
| S/N （dB） | 18-22 | 22-25 |
| Magnification | 1x / (3x /5x as optional) | – |
| MTTF（H） | 10,000 | – |
| FOV(°) | 42+/-3 | – |
| Detection sensitivity（M） | 180-260 | 200-300 |
| Adjustable range of eye distance | 65+/-5 | – |
| Diopter range | +5/-5 | – |
| Lens system | F1.2, 25mm | – |
| Coating | Multilayer broadband coating | – |
| Distance range（M） | 0.25–∞ | – |
| Auto anti strong light | High sensitivity broadband detection | – |
| Rollover detection | Solid non-contact automatic detection | – |
| Dimensions （mm）(w/o eyepiece rubber) | 130x130x56 | – |
| Material | Aviation aluminum | – |
| Weight（no battery） | 400g | – |
| Power supply | 2.6-4.2V | – |
| Battery type | AAx2 | – |
| Infrared auxiliary light source wavelength (nm) | 850 | – |
| Digital video | Yes, Exit Power 5V 1W | – |
| Video resolution | Yes, Video 1Vp-p SVGA | – |
| Battery life（H） | 80(IR OFF) | 40(IR ON) |
| Operating Temperature（℃） | -40/+50 | – |
| Relative Humidity | 5%-98% | – |
| Environment rating | IP65（IP67 optional） | – |
Product Features & Advantages & Innovations
It can change magnification and so on. The product can be adjusted arbitrarily according to different eye distances. The night vision instrument has built-in digital video acquisition system, which can easily realize digital video acquisition and transmission at night and under no illumination conditions, thus realizing visual command coordination at night. Built infrared lighting and automatic anti glare protection. The product has strong practicability and can be applied to military observation, coastal defense reconnaissance, public security surveillance, forensics, customs anti-smuggling, etc. in no illumination environment at night. It is an ideal equipment for the public security department, armed police force, special police force, and guard patrol.
1. IP65 weatherproof (IP67 optional).
2. Automatic shut off when flipped up.
3. Infrared illumiator indicator.
4. Embedded spring in battery’s cap.
5. Fully adjustable head mount.
6. Mil-spec multi-coated optic.
7. Automatic brightness control.
8. Bright source protection.
9. 3x/5x can be attached for viewing long distance.
Products FAQ
Military night vision primarily uses three technologies: low-light image intensification (I²) to amplify ambient light, thermal imaging to detect heat signatures, and active infrared (less common due to visibility risks). Generational tiers define performance: Gen1 (basic I², requires supplemental IR), Gen3 (gallium arsenide photocathodes, 10x sensitivity boost, 15,000-hour lifespan), and Gen4 (filmless tech for high-contrast environments).
Critical specs include detection range (200+ meters for infantry, 1km+ for vehicles), durability (IP67 waterproof, -40°C to +60°C tolerance), and resistance to battlefield hazards (EMP, laser dazzlers). Applications span night raids, UAV navigation, and armoured vehicle operations.
Military devices exceed civilian models in resolution (64-81 lp/mm vs. 40-57 lp/mm), lifespan (10,000+ hours vs. 5,000 hours), and compliance with MIL-STD-810G for shock/drop resistance. Costs reflect this gap: military units range from 4,000−15,000, while civilian versions cost 1,000−3,000.
Regular lens cleaning with microfiber cloths prevents coating damage; lithium batteries require monthly charge cycles to avoid degradation. Storage must maintain 30%-50% humidity to prevent photocathode oxidation. Malfunctions like flickering often indicate tube issues needing factory repair.
Yes, you could download on our website or send us email to ask for the newest version. Email: [email protected]. We will reply you ASAP.
Deekon Group provide the one stop solution for military & police department: from all kind of uniforms, boots & shoes, bulletproof products, bags & backpack, camping products to all kind of accessories.
We have more than 30 years in military field. We will exchange specs, image and other details to minimize the misunderstandings. We will also provide pre-production samples for your approval before the production.
We could accept many kinds of payment method, Bank transfer, Western Union or Cash. For the payment term, it will depend on the order, usually we do 30% advance payment and balance before the shipment.
